Application

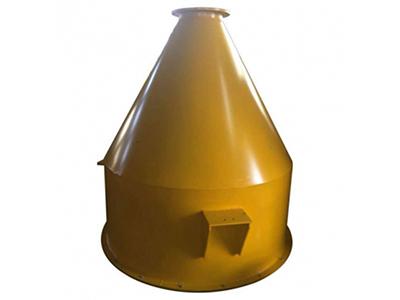

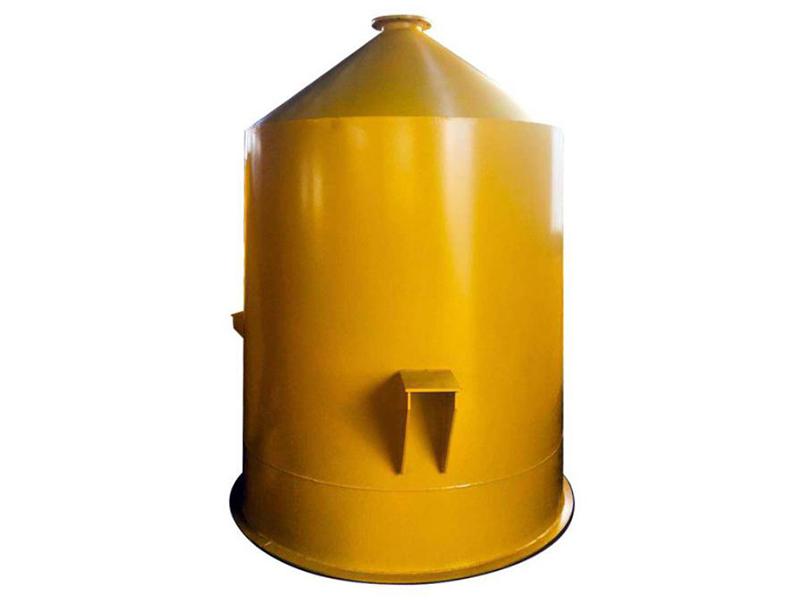

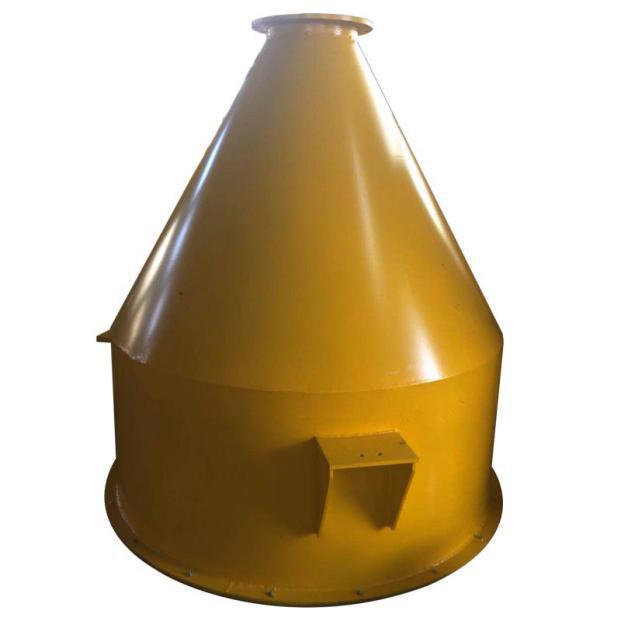

The weighing scale includes the tank, sensor, data processer and displayer,
material discharge control valve and structural parts. When the powder or
slurry is poured into the tank, an electronic sensor will retrieve the powder
weight or slurry weight and send the data to the displayer for observation.
Powder weighing scales are used for weighing powder materials
like lime, cement, and more. Slurry weighing scales are used for weighing
slurry of fly ash and water or slurry of sand and water, as well as heating the
slurry.
Parameters 1: Powder Weighing Scale
Type
Volume
Size
Sensor
Capacity
FLC-1
1.49m³
φ1.4X1.55
Toledo 3PCX1000KG
50-150 thousand m3 AAC block production line
FLC-2
1.88m³
φ1.4X1.8
Toledo 3PCX1000KG
150-200 thousand m3 AAC block production line
FLC-3
2.2m³
φ1.5X1.85
Toledo 3PCX1000KG
200-300 thousand m3 AAC block production line
2: Slurry Weighing Scale
Type
Volume
Size
Sensor
Capacity
LJC-1
2.54m³
φ1.4X1.9
Toledo 3PCX2000KG
50-150 thousand m3 AAC block production line
LJC-2
3.05m³
φ1.5X2
Toledo 3PCX2000KG
150-200 thousand m3 AAC block production line
LJC-3
2.88m³
φ1.7X2.05
Toledo 3PCX2000KG
200-300 thousand m3 AAC block production line
Features of Weighing Scale
The weighing sensor is Toledo brand from Italy with reliable quality and error of 0.5-1.0%.
Simple structure, less quick-wear parts and easy to install and maintain.
The output signal sent by the sensor will connect with a PLC system for achieving auto control.
The material discharging is controlled by a pneumatic butterfly valve which is lightweight, easy to install, replace and adjust.
