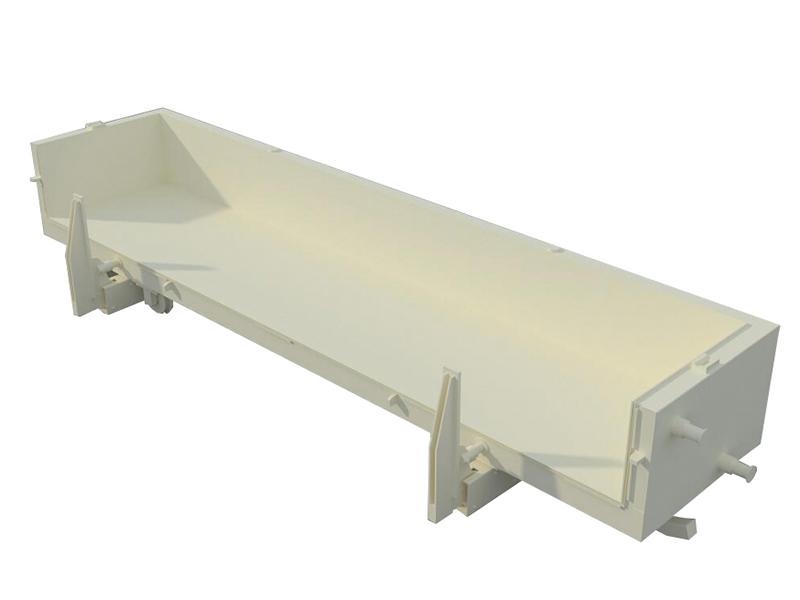

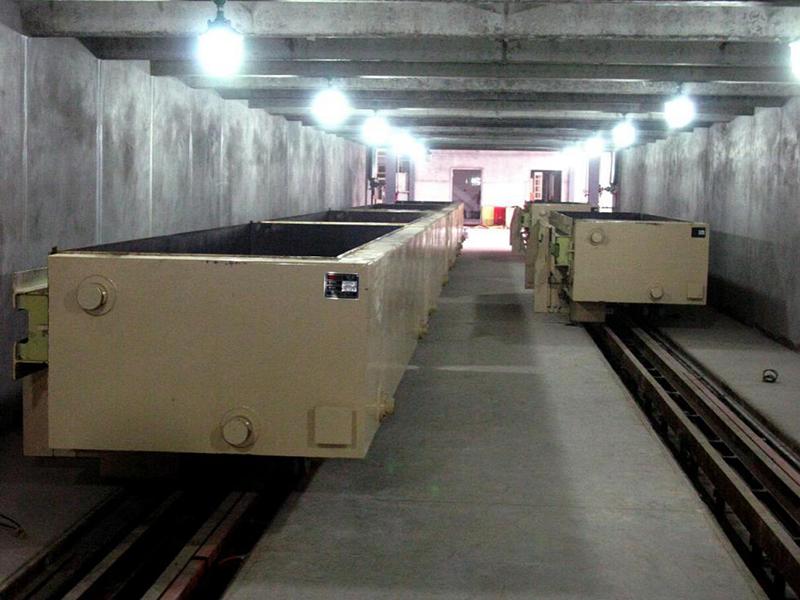

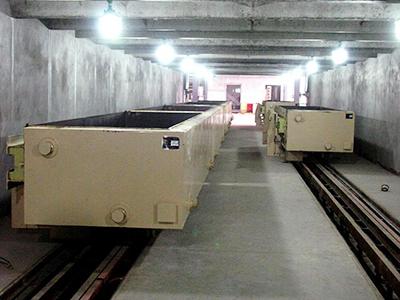

The block mold is a vessel for pouring concrete blocks. The mold consists of the mold frame, side plate (base plate), and clamping arm.
|Model ||Length (mm) ||Width (mm) ||Height (mm) |
|M1 ||4200 ||1200 ||600 |
|M2 ||4800 ||1200 ||600 |
|M2 ||5000 ||1200 ||600 |
|M4 ||6000 ||1200 ||600 |
|M5 ||6000 ||1500 ||600 |
- The mold frame is formed by structural steel and steel plate, leading to a durable structure and high rotational sensitivity.
- Both ends are equipped with an overturn shaft and sealing strip to prevent leakage of slurry.
- The side plate is welded by structural steel and steel plate to ensure its high rigidity. In doing so, it is difficult to deform a mold after it has entered the curing autoclave.
- The clamping arm includes the pinch roller, arm, and rotating shaft.
