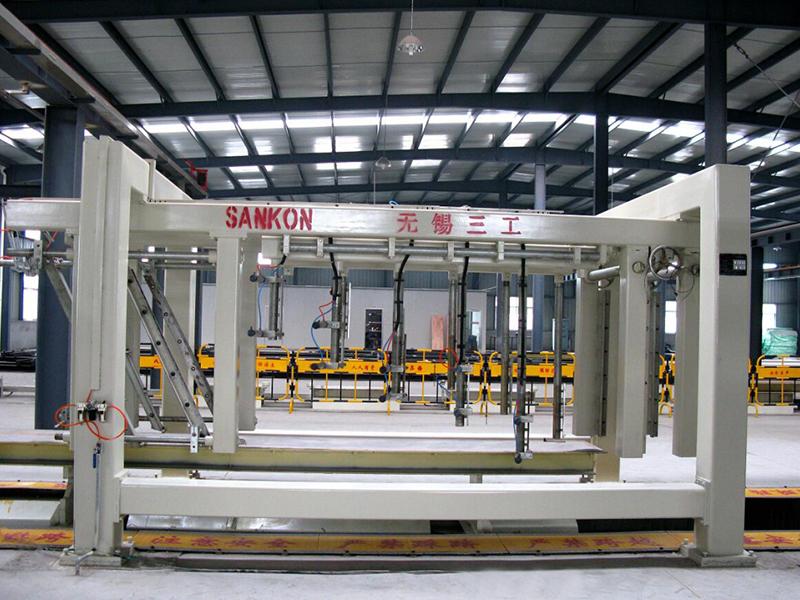

SANKON cutting machine comes in two models, which are ACUT4.0M(ACUT 4.2M) step mobile (fixation) cutting machine and ACUT6.0M6 step mobile fixation cutting machine. The following are some details of this component of AAC machine.
Features
1. The cutting machine is very easy to install and maintain as a result of its simple structure. The cutting and running are controlled by the same device, which makes maintenance more convenient.
2. After tilting the blank stands vertically with the width of 600mm and the height of 1200mm, which is unlikely to be broken and drifted, thus helping achieve shorter cutting wire and higher cutting precision.

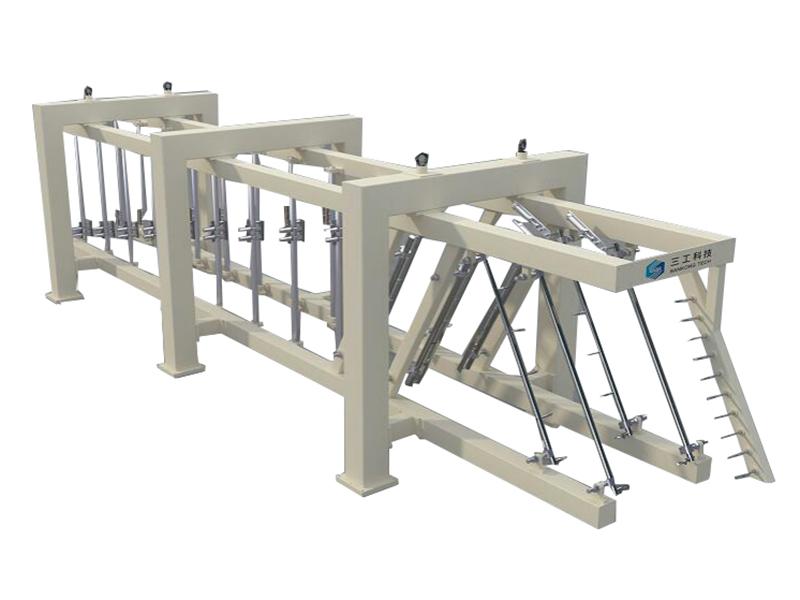

3. The grooves on both sides of the blank can be milled at the same time when the blank is cut vertically by the vertical cutting device, so no groove processing device is needed.
4. The step mobile cutting machine is used to process both building blocks and slabs. The blank can be cut in six sides so that the quality of product will not be affected by mould oil and the deformation of the mould.
5. The cutting machine can complete processes such as tilting, vertical cutting and cross cutting in different positions.
Working Principle

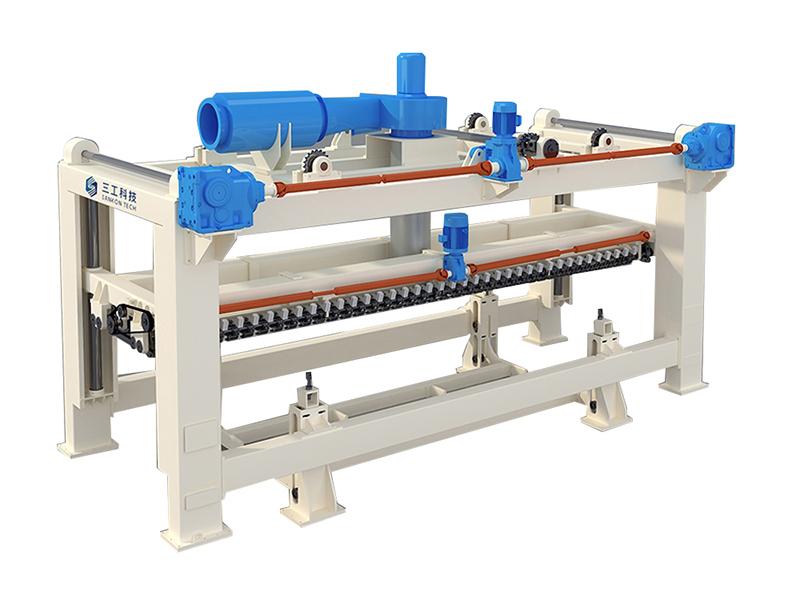

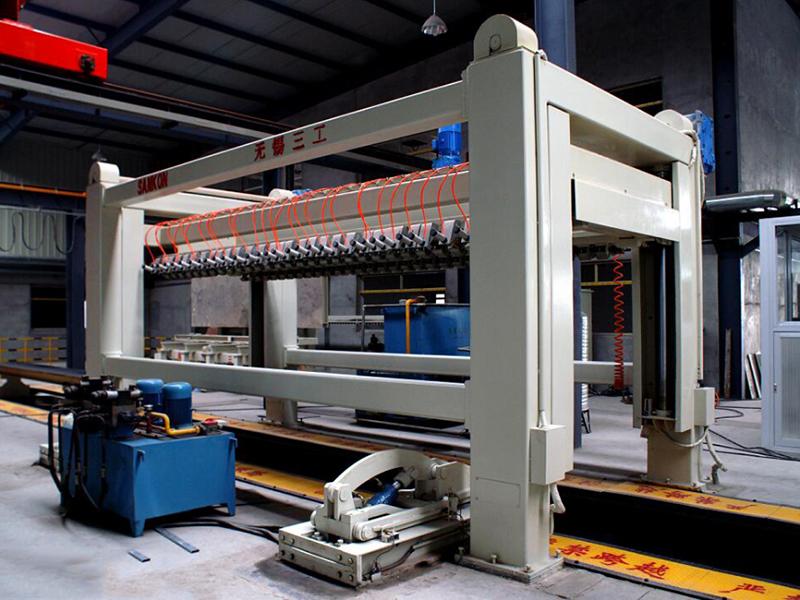

The tilting hanger turns mould 90 degree in the air, demoulds the blank and puts it on the cutting table together with the side plate. Then the blank will be cut by the longitudinal cutting device through the motor and its own running, after running at the pause position, it will be cut horizontally by the cross cutting device that is driven by the motor to the center of the blank. The cross cutting holder drops and cuts vertically from up to down until it is reset upward.
Main Technical Specifications
ACUT4.0M(ACUT 4.2M) Step Mobile (Fixation) Cutting Machine
Serial Number | Name | Unit | Index | Remarks |
1 | Capacity | 10Thousand m³/Year | 5-15 | Annual Production |
2 | Size of Blank | M | 4*1.2*0.6 | Net |
3 | Cutting Modulus | Mm | 5/10 | Vertical Cutting/Cross Cutting |
4 | Precision of cutting | Mm | ±3 ±1.5 ±1.5 | Length,Width and Height |
5 | Period of production | Min/Mould | 5 | |
6 | Quality of Master Cutting Machinery | t | 12 | Vertical Cutting/Cross Cutting |
7 | Installed of Master Cutting Machinery | kw | 11.4 | Including Hydraulic Station |
ACUT6.0M6 Step Mobile Fixation Cutting Machine
Serial No | Name | Unit | Index | Remarks |
1 | Capacity | 100000m3/year | 10-30 | |
2 | Size of Blank | m | 6x1.2x0.6 | Net |
3 | Cutting Modulus | mm | 5/10 | Vertical Cutting/Cross Cutting |
4 | Precision of Cutting | mm | ±3±1.5±1.5 | Length Width and Height |
5 | Period of production | Min/mould | 6 | |
6 | Quality of Master Cutting Machinery | t | 18 | Vertical Cutting/Cross Cutting |
7 | Installed Capacity of Master Cutting Machinery | kw | 12.9 |
Packaging
The main body of big size equipment is unpacked, but electric control panel and spare parts are in wooden or iron package. Specific package based on customer's requirements is also available.
Service
SANKON cutting machine comes with a one-year warranty as well as installation and commissioning services.
SANKON is a professional cutting machine manufacturer and supplier in China. Beside the Yangtze River delta, we have easy access to highways and sea ports which allow us to ship our products at lower costs. In addition to cutting machine, we also produce other components of AAC machine, such as tilting hanger, autoclave, finished crane, and so on.
If you are looking for any of AAC machines, please contact us directly. Welcome!
